Digital pyrometer CTfast LT
°C15:1USB

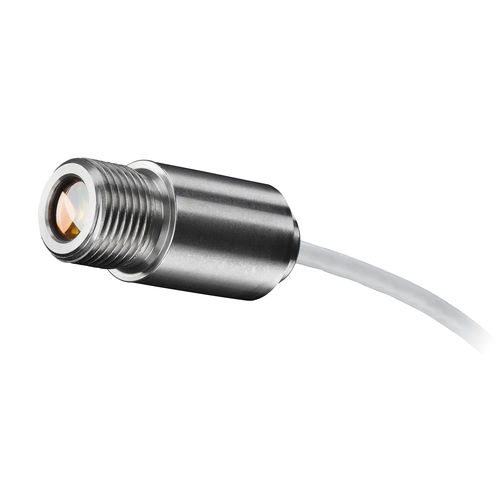

Digital pyrometer - CTfast LT - Optris GmbH & Co. KG - °C / 15:1 / USB
Digital pyrometer - CTfast LT - Optris GmbH & Co. KG - °C / 15:1 / USB
Digital pyrometer - CTfast LT - Optris GmbH & Co. KG - °C / 15:1 / USB - image - 2
Digital pyrometer - CTfast LT - Optris GmbH & Co. KG - °C / 15:1 / USB - image - 3
Add to favorites
Compare this product


Characteristics

Display
digital
Units of measurement
°C
Optical resolution
15:1
Communication
USB, RS485, 4-20 mA, RS-232, PROFIBUS, Ethernet
Protection level
IP65
Configuration
stationary, compact, built-in, miniature, screw-in
Applications
industrial, for harsh environments, for surface temperature measurement, for quality control, for the glass industry
Other characteristics
stainless steel, non-contact
Temperature

Min.: -50 °C
(-58 °F)

Max.: 975 °C
(1,787 °F)

Precision

1 %

Spectral range

Min.: 8 µm

Max.: 14 µm

Response time

3 ms, 4 ms, 6 ms, 9 ms

Description

The pyrometer optris CTfast LT is perfectly suited for especially quick measurements ,due to its extremely short response time of 6 ms. The unchoppered sensor allows a continuous temperature surveillance of fast processes in a spectrum of -50°C up to 975°C. Measurement Specifications • Optical resolution (90% energy): 15:1 (LT15F) 25:1 (LT25F) • Repeatability1)2) (at ambient temperature 23 ± 5°C): ± 0.75% or ± 0.75°C • Temperature resolution (NETD): 0.2 K2)3) (LT15F) 0.4 K2)3) (LT25F) • Emissivity / Gain (adjustable via programming keys or software): 0.100 – 1.100 • Transmissivity (adjustable via programming keys or software): 0.100 – 1.100 • Signal processing (parameter adjustable via programming keys or software, respectively): peak hold, valley hold, average, extended hold function with threshold and hysteresis General Specifications • Environmental rating: IP 65 (NEMA-4) • Ambient temperature: sensing head: -20°C … 120°C electronics: 0°C … 85°C • Storage temperature: sensing head: -40 … 120°C electronics: -40°C … 85°C • Relative humidity: 10 – 95%, non condensing • Shock: IEC 60068-2-27 (25G and 50G) • Vibration:IEC 60068-2-6 (sinus shaped), IEC 60068-2-64 (broadband noise) • Weight: sensing head 40 g electronics 420 g

Catalogs

CTfast LT
CTfast LT
2 Pages
