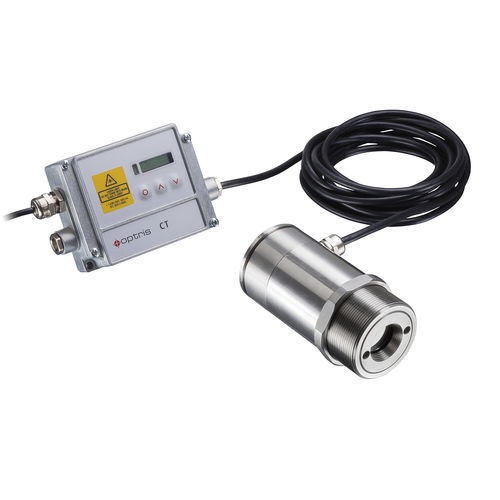

Infrared thermometer CTlaser G5

digital°CUSB

The infrared thermometer optris CTlaser G5 has been specifically designed for measurement of glass temperatures, especially for container glass, lightbulb production, vehicle glass production as well as in the manufacturing of solar cells. Last but not least, the IR thermometer optris CTlaser G5 allows for temperature measurement of smallest objects of 1 mm from a distance of 70 mm. The IR thermometer optris CSlaser G5 HF offers very quick response times and is thus perfectly suited for fast processes. Measurement specifications • Optical resolution (90% energy): 45:1 (G5L, G5HF, G5H1F), 70:1 (G5H) • Repeatability (at Tamb = 23 ± 5°C): ±0.5 % or ±0.5 °C2) • Temperature resolution (digital): G5L, G5H1F: 0.1 K, G5H, G5HF: 0.2 K • Emissivity / Gain (adjustable via programming keys or software): 0.100 – 1.100 • Transmissivity / Gain (adjustable via programming keys or software): 0.100 – 1.100 • Signal processing (parameter adjustable via programming keys or software, respectively): peak hold, valley hold, average, extended hold function with threshold and hysteresis General Specifications • Environmental rating: IP 65 (NEMA-4) • Ambient temperature: sensing head: -20°C … 85°C (50°C with laser ON) electronics: 0°C … 85°C • Storage temperature: sensing head: -40°C … 125°C electronics: -40°C … 85°C • Relative humidity: 10 – 95%, non condensing • Vibration:IEC 60068-2-6 (sinus shaped), IEC 60068-2-64 (broadband noise) • Shock: IEC 60068-2-27 (25G and 50G) • Weight: sensing head: 600 g electronics: 420 g
