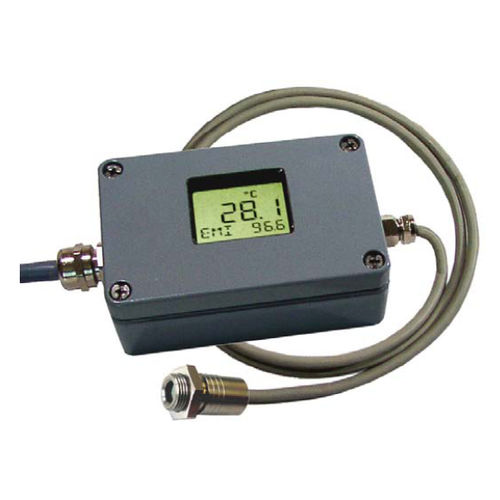

Pyrometer with remote sensing head IN5 series

thermocoupledigital°C

• Sensor head exchangeable without recalibration • Isolated relays contact • Sensor head temperature up to 85°C (IN510) • Sensor head temperature up to 180°C (IN520) • Selectable analog output (current 0/4...20mA, voltage 0...5V or thermocouple type J or K) • Setting of parameters via keyboard or interface • Power supply: 8-32 VDC • Option: protection armature with insolated mounting and air purge connection The IN510 and IN520 are digital pyrometers for non-contact température measurement of non-metallic or coated objects. Ail versions are equipped with an illuminated LC display which shows the actual température reading. Ail available parameters can be set via the integrated keyboard. Ail pyrometers are equipped with a stainless Steel miniature sensor head. The field of view is 10:1 (see diagram). The stainless Steel sensor heads can be used in ambient températures up to 85°C (IN510) or 180°C (IN520) without cooling. Sensor heads can be replaced by customers without losing accuracy.
