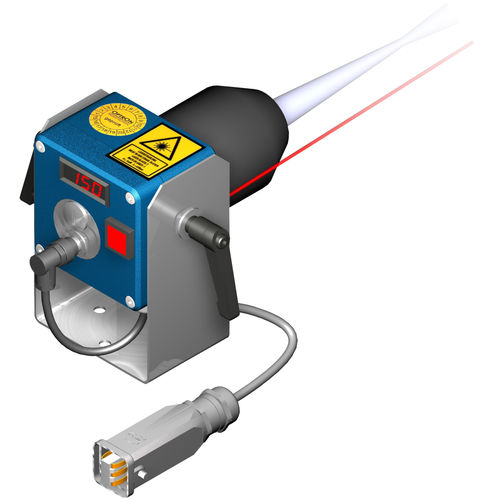

Digital pyrometer IN 5 PD
°Cwith laser pointer4-20 mA

Digital pyrometer - IN 5 PD - Optron - °C / with laser pointer / 4-20 mA
Digital pyrometer - IN 5 PD - Optron - °C / with laser pointer / 4-20 mA
Add to favorites
Compare this product


Characteristics

Display
digital
Units of measurement
°C
Aim
with laser pointer
Communication
4-20 mA
Protection level
IP65
Configuration
stationary
Applications
for surface temperature measurement
Other characteristics
non-contact
Temperature

Min.: 0 °C
(32 °F)

Max.: 300 °C
(572 °F)

Spectral range

Min.: 8 µm

Max.: 14 µm

Response time

120 ms

Description

• special equipment for measuring profile rubber, plastics, etc. • integrated lense protection • back sided digital display • switch for laser pilot light • measuring spot: Ø6 mm • stainless steel mouting bracket Stationary contactless temperature measure device with pilot laser light and digital indicator for measurements at nonmetallic surfaces e.g. rubber profile, synthetics ... • Laser protection class 2 for measuring level indication • back side digital temperature indicator and pilot laser light button • Compressed air connection 1/8" for hose outer diameter 6mm for air purification (to keep the lens clean) • complete with 0.2m connection cable with Harting-connector and plug socket; Power supply 230VAC, 9VA (optional 110V) and mounting bracket
