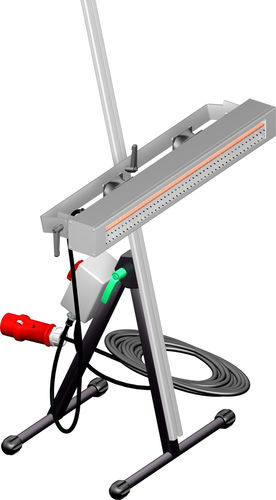

Electric infrared heater KL-2 series

for dryingshortwave

• foldable space saving stand • for universal drying works • 3 kW Power • drying area approx. 0.8 x 0.5 m • IR-module can be height adjusted, rotated and tilted • working height 0.1 ... 1.65 m • main switch • 10 m connection cable Optron IR-modules work in a shortwave IR-range. The shortwave energy pénétrâtes the lacquer coating and dries it from the inside. This means being able to work with higher performance output without having to risk bubble formation, which results in a shorter drying time. ► - 100% power within 1-2 seconds ► - Connected load: 3 kW; 400 V + N + PE (50/60 Hz) ► - Connection box with mains switch ► - Two integrated fans guarantee also at continous operation small casing température and long lifetime of the IR-emitter. ► - Ail adjustments lockable through rotary levers ► - Drying area approx. 0.8 x 0.5 m (W x H) ► - Working height: min. 0.1 m / max. 1.65 m ► - 10 m connecting cable with 16 A CEE-plug ► - Up to 3 stands at 3 kW each can be connected to a 16 A CEE socket by using a junction
