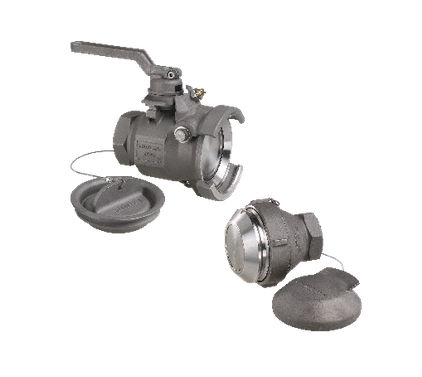

Hydraulic fitting Drylok™

quickstainless steelalloy

Drylok® dry disconnect couplers and adaptors are designed to safely transfer hazardous, corrosive volatile liquids such as acids, solvents and petrochemicals. Rugged design, excellent flow with little product loss makes the Drylok ideal for the most challenging loading-rack environments. The Drylok has become the coupler of choice in many of the most critical loading applications. Features & Benefits Very low product loss. Flat Poppet Face design ensures minimal loss at disconnect. Fully interlocked. Double Safety System. Cannot be opened unless connected to mating fitting. Optimal flow. Less obstructions provide better flow characteristics in high-pressure or viscosity applications. Rugged. Designed to withstand everyday use/abuse at the loading rack. Ease of maintenance. Standard o-ring seals make maintenance simple, easy, and cost-effective. 150 psi (10 bar) pressure rating 1", 2" and 3" sizes Stainless-Steel, Alloy 20 OR Hastelloy C construction AAR approved CRN approved Can be coupled in any orientation - 360°
