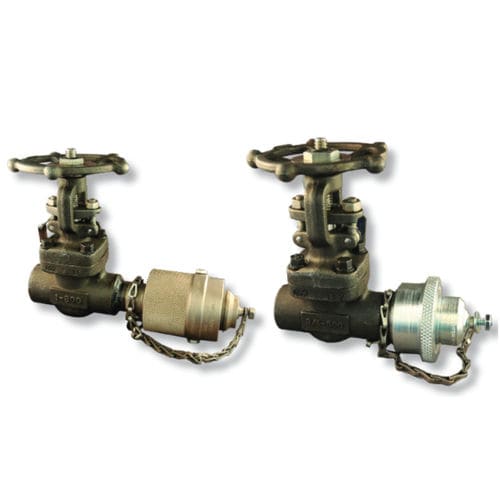

Gate valve SaVD™manualdrainweld
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- manual
- Function
- drain
- Body
- weld
- Associated function
- vent
- Other characteristics
- compact
- DN
0.75 in, 1 in, 1.5 in, 2 in
Description
The SaVD™ Series Safe Vent & Drain System combines the best of both technologies to allow fast, simple, compact, reliable and environmentally friendly depressurizing, venting and safe draining of piping systems. Performance is far superior when compared to conventional three valve configurations.
Features/Benefits
The SaVD™ Safety Seal Cap is designed to replace high pressure bull plugs used in venting & draining couplings SAGD steam and heavy oil piping.
Safety Seal Cap (with chain) can be retightened to seal
Outer seal & locking threads are located OUTSIDE the wetted surfaces
Valve mounted couplings halves can be safely rodded, steam cleaned, pressure purged with specially designed & CRN registered adapters.
NACE materials of construction: Carbon Steel
Solid Material Wedge, NO overlays
Available in 3/4”, 1”, 1 1/2” and 2” sizes
Available with butt weld, MNPT, or seal cap
