Knife gate valve BT with handwheelshut-offfor wastewater
Add to favorites
Compare this product
Characteristics
- Type
- knife gate
- Operation
- with handwheel
- Media
- for wastewater
- Other characteristics
- bidirectional
- DN
Min.: 50 mm
(1.969 in)Max.: 600 mm
(23.622 in)- Pressure
150 psi
Description

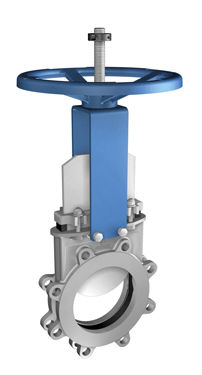

The BT model knife gate is a bi-directional lug type valve designed according to MSS-SP-81 and TAPPI TIS 405-8 for industrial service applications. The design of the body and seat assures non-clogging shut off on suspended solids in industries such as:
Pulp and Paper
Power plants
Mining
Chemical plants
Wastewater
Food and Beverage
etc.
Sizes:
DN 2"/50 to DN 24”/600 (larger diameters on request)
Working pressure:
DN 2"/50 to DN 24”/600: 150psi / 10kg/cm2
Standard flange connection:
ANSI B16.5 (class 150)
