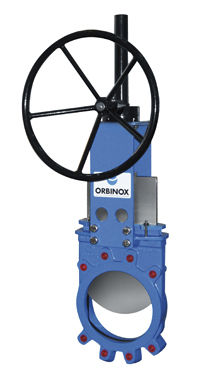

Knife gate valve HB with handwheelshut-offfor wastewater
Add to favorites
Compare this product
Characteristics
- Type
- knife gate
- Operation
- with handwheel
- Media
- for wastewater
- Other characteristics
- bidirectional
- DN
Max.: 300 mm
(11.811 in)Min.: 50 mm
(1.969 in)- Pressure
16 bar
(232.1 psi)
Description
The HB model knife gate is a bi-directional valve designed for general industrial service applications. The design of the body and seat assures non-clogging shutoff on suspended solids in industries such as:
Wastewater treatment plants
Chemical plants
Food and Beverage
etc.
Sizes:
DN 50 to DN 300 (larger diameters on request)
Working pressure:
DN 50 to DN 300: 16 kg/cm²
Standard flange connection: DIN PN 16 (Others on request)
Face to face dimensions acc. EN558-1 serie20 (DIN3202 K1) up to DN 500.
Directives:
DIR 98/37/CE (MACHINES)
DIR 97/23/CE (PED) Fluid: Group 1(b), 2 (Cat. I, mod. A)
DIR 94/9/CE (ATEX) Please contact Orbinox for information and availability of categories and zones.
