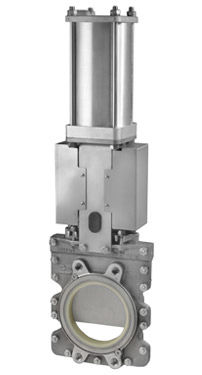

Knife gate valve CR

electricshut-offwafer

The CR model knife gate is a heavy duty valve designed for handling difficult applications. This valve is suitable for use in recycle applications, like junk or sand traps of pulpers, high consistency cleaners... or as silo outlet with solid material. The two piece body with round inlet and square outlet (larger than the inlet) assures non-jamming. Sizes: DN 100 to DN 600 (larger diameters on request) Working pressure: DN 100 to DN 400: 7 kg/cm² DN 500 to DN 600: 4 kg/cm² Standard flange connection: EN1092 PN10 and ANSI B16.5 (class 150) /on valve inlet only Directives: DIR 98/37/CE (MACHINES) DIR 97/23/CE (PED) Fluid: Group I(b), II (Cat. I, mod. A) DIR 94/9/CE (ATEX) Please contact Orbinox for information and availability of categories and zones.
