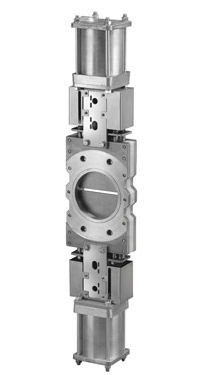

Knife gate valve DT

electricshut-offfor sludge

The DT model knife gate is double gate valve widely used in the Pulp and Paper industry (recycling or secondary fibre processing) designed to handle high concentrated or contaminated media. In open position, both gates retract into the body and allow full flow. When closing, the gates push stock and contaminants as staples, wires... out of the body into the flow. Stroke time is the half of conventional valves. All components subject to wear are replaceable. Sizes: DN 100 to DN 600 (larger diameters on request) Working pressure: DN 100 to DN 250: 10 kg/cm² DN 300 to DN 400: 6 kg/cm² DN 450: 5 kg/cm² DN 500 to DN 600: 4 kg/cm² Standard flange connection: EN1092 PN10 and ANSI B16.5 (class 150) Directives: DIR 98/37/CE (MACHINES) DIR 97/23/CE (PED) Fluid: Group 1(b), 2 (Cat. I, mod. A) DIR 94/9/CE (ATEX) Please contact Orbinox for information and availability of categories and zones.
