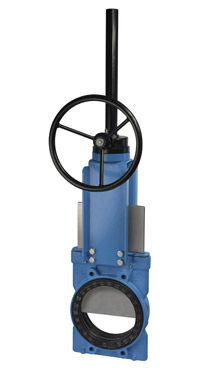

Knife gate valve VG with handwheelfor sludge
Add to favorites
Compare this product
Characteristics
- Type
- knife gate
- Operation
- with handwheel
- Media
- for sludge
- DN
Min.: 50 mm
(1.969 in)Max.: 900 mm
(35.433 in)- Pressure
10 bar
(145 psi)
Description
The VG model knife gate is a wafer valve designed for a wide range of industrial applications. The double-seated design provides bi-directional shut off. The design of the valve body and the two rubber sleeves makes the VG valve suited for use in handling abrasive slurries in industries such as:
Mining
Power plants
Chemical plants
Wastewater treatment
etc.
Sizes:
DN 50 to DN 900 (larger DN on request)
Working pressure:
DN 50 to DN 400: 10 bar
DN 450 to DN 600: 6 bar o 10 bar
DN 700 to DN 900: 5 bar
Note: higher working pressures on request.
Standard flange connection:
EN1092 PN10 and ANSI B16.5 (class 150)
Standard face to face: see the catalogue
