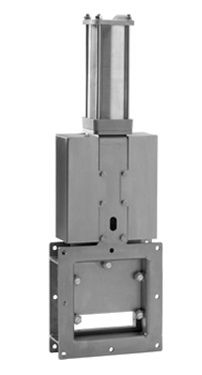

Knife gate valve BC electricshut-offfor wastewater
Add to favorites
Compare this product
Characteristics
- Type
- knife gate
- Operation
- electric
- Media
- for wastewater
- Applications
- for bulk materials
- DN
Max.: 600 mm
(23.622 in)Min.: 150 mm
(5.906 in)
Description
The BC model knife gate is a square port low-pressure valve for solid loaded fluids, mainly used in bulk handling and silo outlet applications in industries such as:
Chemical plants
Wastewater treatment Plants
Power plants
Mining
Food and Beverage
etc.
Sizes:
From DN 150 x 150 to DN 600 x 600 (other dimensions on request)
Working pressure:
150 x 150 to 600 x 600: 1 kg/cm²
For higher pressure: Casted bodies (on request)
Directives:
DIR 98/37/CE (MACHINES)
DIR 97/23/CE (PED) Fluid: Group 1(b), 2 (Cat. I, mod. A)
DIR 94/9/CE (ATEX) Please contact Orbinox for information and availability of categories and zones.
Catalogs
No catalogs are available for this product.
See all of ORBINOX ‘s catalogs
