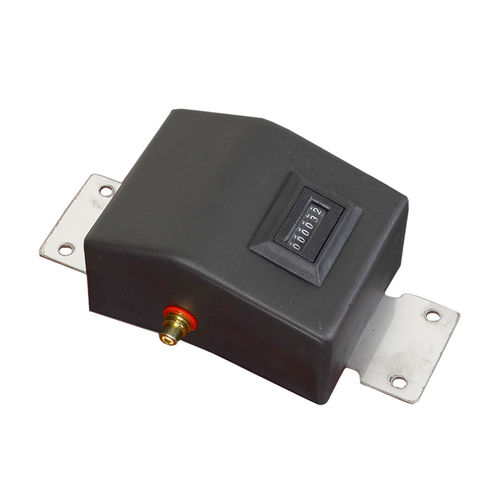

Lightning strike counter NIRVANA

analogelectromechanical

NIRVANA Electromechanical Lightning Strike Counter is designed for takes all conducted lightning strikes under record. Likewise lightning terminals and grounding systems, lightning strike counters should alse be durable to extreme currents. NIRVANA Lightning Strike Counter works with the arrested strikes own current and doesn't need any external battery. Counting digits can be modified as to having 6 number digits. Light and being accordance with IP65 level durability makes NIRVANA a perfect instrument to complete a lightning protection system. ►High voltage impulse durability ►Doesn't require external battery ►High quality Polycarbonate components ►Testable with ORBITAL Testers ►Fully compatible with the standards - SPECIFICATIONS :   ATTRIBUTES   - Current Sensitivity : 1500 A 8/20 ms impulse - Operating Range : 1500 A, Max. 100kA 8/20 ms - Displaying : Mechanical 6 Digits - Dimensions (mm) : 100(D) x 120(H) x 70(W) - Weight : 0.9 kg - Mounting/Connecting : Double Ø4 Cable, 50 x5 mm tape - Construction : Hard Plastic enclosure - Water Resistance : IP65 - Operating Temperature : -15C to 65C
