Orbital welding head HX 12P

TIGclosedfor tubes

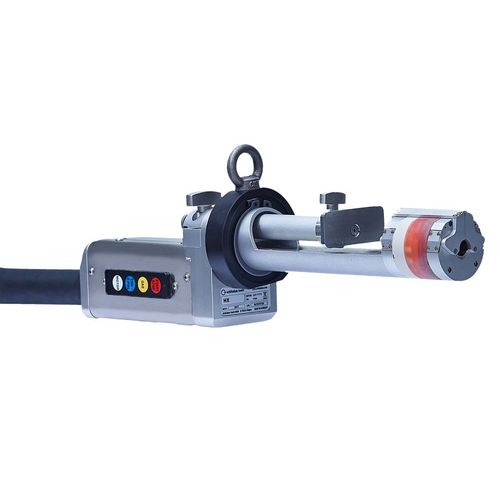

HX 12P - enlosed orbital welding head "HX" stands for "heat exchanger" and for the welding of pre-mounted elbows in tight pipe bundles of heat exchangers into a pipe coil. There is no other solution as effective as this one in the world! Pre-mounted pipe elbows (for example in heat exchanger construction), even those in tight pipe bundles, can be joined to small stainless-steel pipes reliably, quickly and safely. Scope of application HX 12P Tube OD [mm] 9,50 - 13,30 [inch] 0.374 - 0.524 Wall thickness (depending on material) [mm] 0,50 - 0,80 [inch] 0.020 - 0.031
