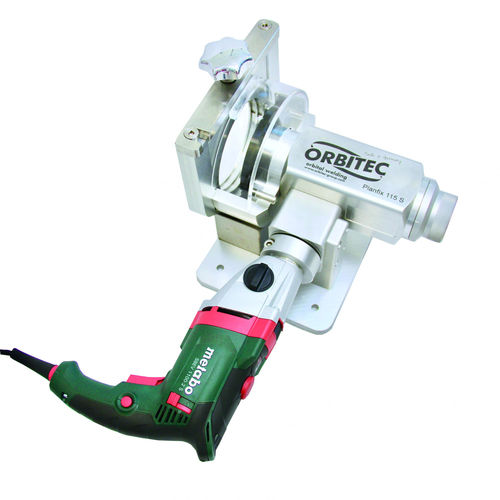

Portable tube squaring machine Planfix 115 S

electric

Tube squaring system Planfix 115 S Tube squaring machines are necessary to achieve burr-free and right-angled seam preparation for orbital welding. That‘s why Orbitec offers two machines, from the small handy Planfix 40 S to the large Planfix 115 S. The Planfix 115 S is a high-performance tube squaring and chamfering device with angle gear for mobile or stationary use with a mains drive. It has a large viewing window, a chip collector and a feed with 0.1mm scale graduation. Optionally, the device can be equipped with a tool carrier and a double-sided indexable insert holder or the well-known Orbitec L facing tool bits. Technical data exemplary for Planfix 115 S Power 230 V: Scope of application: OD 9.53-114.3mm / 0.375“-4.500“ Max. wall thickness: max. 4mm Dimensions: 530 x 315 x 295mm Weight: 15kg Drive: Metabo Idle speed: 0-1100/ 0-3100/min Mains voltage: 230-240V Input: 50-60Hz Max. power: 5.1A Package includes exemplary for Planfix 115 S Power 230 V: - Tube clamping attachment - Drive - Tool set - Transport box Optional: - Planfix 115 S collets - Special HSS facing tool bit (TIC coated) - Planfix insert holder - Two-sided tool bit (TIC coated)
