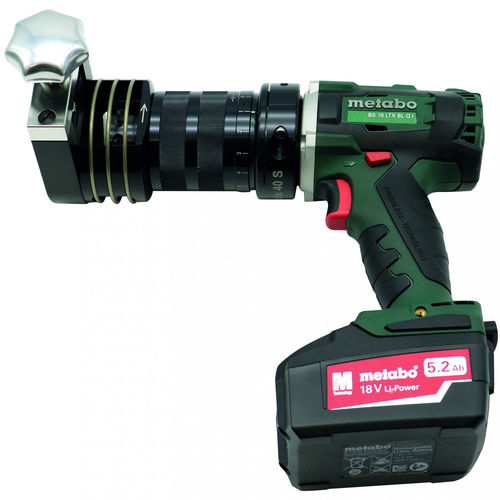

Portable tube squaring machine Planfix 40 S

Tube squaring system Planfix 40 S Tube squaring machines are necessary to achieve burr-free and right-angled seam preparation for orbital welding. That‘s why Orbitec offers two machines, from the small handy Planfix 40 S to the large Planfix 115 S. The Planfix 40 S is a powerful and handy squaring device for mobile or stationary use with battery or mains drive. It has a large viewing window, a tool carrier for mounting the inserts, double-sided indexable inserts, and a feed with 0.1mm scale graduation. Alternatively, existing Orbitec facing tool bits can be used without tool carriers. The new inserts have a long service life and can process unalloyed, low-alloy and high-alloy steel quickly and reliably with high precision. Technical data exemplary for Planfix 40 S battery pack 230 V: Scope of application: DA 3-40mm / 0.386“-1.575“ Max. wall thickness: max. 4mm Dimensions: 275 x 250 x 135mm Weight: 3.4kg Drive: Metabo Idle speed: 0-500/ 0-1850/min Lithium ion battery output voltage: 18V / 5.2Ah Charger: ASC 30-36V air cooled Mains voltage: 230-240V Input: 50-60Hz Max. power: 3A Package includes exemplary for Planfix 40 S battery pack 230 V: - Tube clamping attachment - Drive - 2 Li-ion batteries - Battery charger - Tool set - Carrying case Optional: - Planfix 40 S collets - Special HSS facing tool bit (TIC coated) - Planfix insert holder - Two-sided tool bit (TIC coated) - Other additives
