Coreless motor BMS10-18DCbrushless12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 12 V
- Configuration
- coreless, ironless, miniature
- Number of poles
- 2-pole
- Applications
- industrial
- Other characteristics
- custom, with sleeve bearing
- Power
4.5 W, 5.2 W
(0.006 hp, 0.007 hp)- Intensity
269 mA, 351 mA
- Torque
0.0006 Nm, 0.0007 Nm
(0.0004 ft.lb, 0.0005 ft.lb)- Rotational speed
31,300 rpm, 32,500 rpm
(196,663.7 rad.min-1, 204,203.52 rad.min-1)- Diameter
10 mm
(0.39 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description

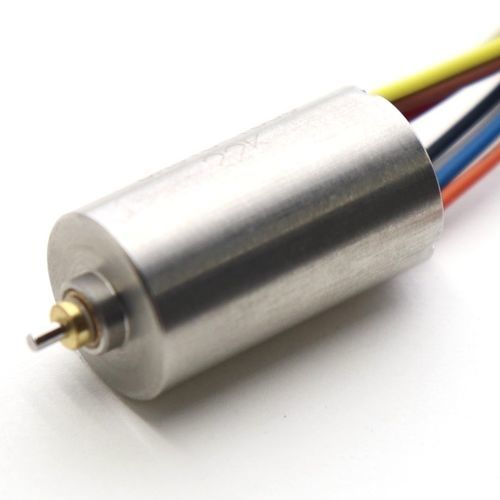

BMS10-18 is a Brushless Motor with a diameter of 10 mm and length of 18 mm.
With Hall sensors, Sleeve bearing Brushless Motor.
Rated torque(mNm):0.63/0.68
No load speed(rpm):31300/32500
No load current(mA):63/68
Stall torque(mNm):4.54/5.24
Stall current(mA):2140/1621
-mini motor
-brushless motor
-long life time
-high output
-high reliability
-miniaturization
