Coreless motor BMS12-15DCbrushless12 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 12 V
- Configuration
- coreless, ironless, miniature
- Number of poles
- 2-pole
- Applications
- industrial
- Other characteristics
- with sleeve bearing
- Power
3.9 W, 5.2 W
(0.005 hp, 0.007 hp)- Intensity
329 mA, 524 mA
- Torque
0.001 Nm, 0.0011 Nm
(0.0007 ft.lb, 0.0008 ft.lb)- Rotational speed
26,200 rpm, 31,000 rpm
(164,619.46 rad.min-1, 194,778.74 rad.min-1)- Diameter
12 mm
(0.47 in)- Operating temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description

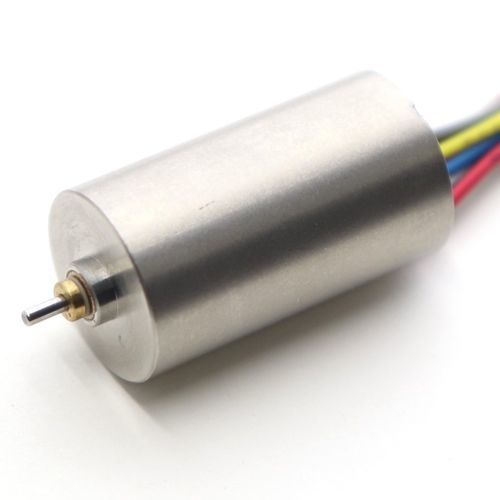

BMS12-15 is a Brushless Motor with a diameter of 12 mm and length of 15 mm.
With hall sensors, Sleeve bearing Brushless Motor.
Rated torque(mNm):1.05/1.10
No load speed(rpm):26200/31000
No load current(mA):113/82
Stall torque(mNm):5.73/6.33
Stall current(mA):2350/1877
-mini motor
-brushless motor
-long life time
-high output
-high reliability
-miniaturization
