Brushed electromotor CMS12-30DC12 V7.4 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 12 V, 7.4 V
- Configuration
- coreless, compact, miniature
- Other characteristics
- with sleeve bearing, high-efficiency, low-noise, low-vibration
- Power
2.9 W, 3.7 W
(0.004 hp, 0.005 hp)- Intensity
121 mA, 162 mA
- Torque
0.0008 Nm
(0.0006 ft.lb)- Rotational speed
13,000 rpm, 15,000 rpm
(81,681.41 rad.min-1, 94,247.78 rad.min-1)- Diameter
12 mm
(0.47 in)- Operating temperature
Max.: 60 °C
(140 °F)Min.: -20 °C
(-4 °F)
Description

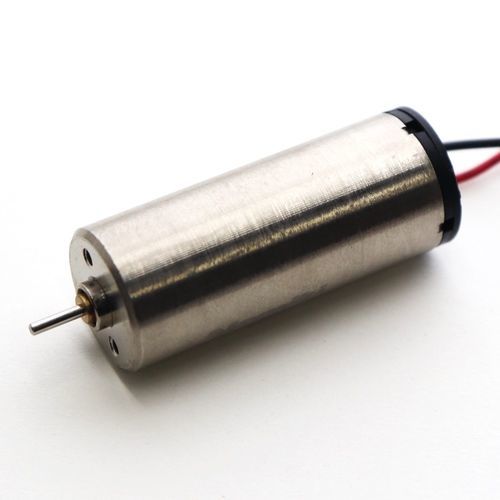

CMS12-30 is a Brushed Motor with a diameter of 12 mm and length of 30 mm.
Precious metal commutation, Sleeve bearing Brushed Motor.
Rated torque(mNm):0.785/0.827
No load speed(rpm):13000/15000
No load current(mA):16/12
Stall torque(mNm):8.55/9.40
Stall current(mA):1605/125
-mini motor
-brushed motor
-low noise
-light weight
-high efficiency
-responsiveness
-low vibration
-miniaturization
