Brushed electromotor CMS16-28DC12 V24 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 12 V, 24 V, 7.4 V
- Configuration
- coreless, compact, miniature
- Other characteristics
- with sleeve bearing, high-efficiency, low-noise, low-vibration
- Power
2.6 W, 2.7 W, 2.9 W
(0.004 hp, 0.004 hp, 0.004 hp)- Intensity
48 mA, 97 mA, 146 mA
- Torque
0.001 Nm, 0.0011 Nm
(0.0007 ft.lb, 0.0008 ft.lb)- Rotational speed
8,900 rpm, 9,200 rpm, 9,600 rpm
(55,920.35 rad.min-1, 57,805.3 rad.min-1, 60,318.58 rad.min-1)- Diameter
16 mm
(0.63 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 60 °C
(140 °F)
Description

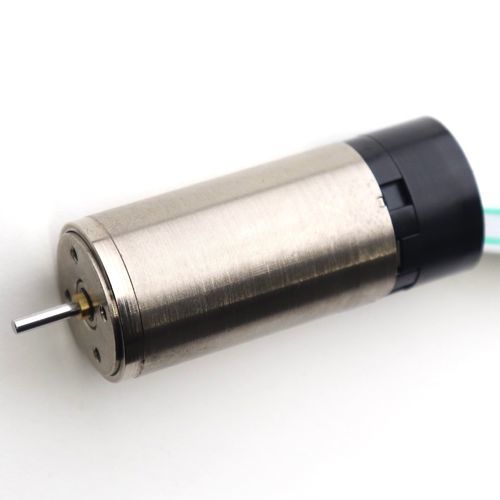

CMS16-28 is a Brushed Motor with a diameter of 16 mm and length of 28 mm.
Precious metal commutation, Sleeve bearing Brushed Motor.
Rated torque(mNm):1.029/1.084/1.019
No load speed(rpm):8900/9200/9600
No load current(mA):15/10/5
Stall torque(mNm):11.05/12.14/10.85
Stall current(mA):1420/992/465
-mini motor
-brushed motor
-low noise
-light weight
-high efficiency
-responsiveness
-low vibration
-miniaturization
