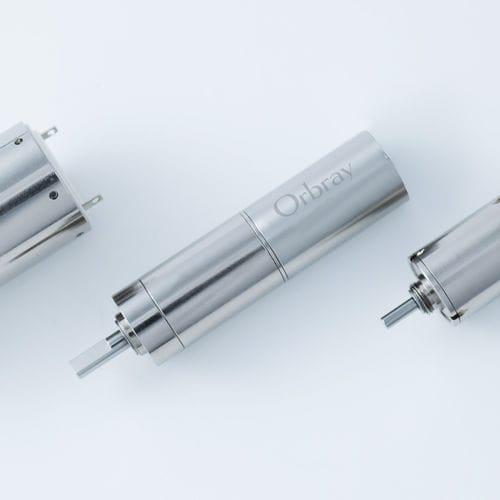

BMS16-20 with Spur gear
The combination of brushless motor with spur gear
Gear ratio options: 29/49/71/94/198/302
- Gear Ratio - 3.5 - 4.8 - 12 - 23 - 58 - 107 - 509 -
1 - Reduction ratio (absolute value) - 3.50:1 - 4.80:1 - 12.25:1 - 22.56:1 - 58.19:1 - 107.17:1 - 509.07:1 -
2 - Number of stage - 1 - 1 - 2 - 2 - 3 - 3 - 4 -
3 - Efficiency - 85 - 85 - 72 - 72 - 61 - 61 - 52 - %
4 - Direction of rotation - = - = - = - = - = - = - = -
5 - Length
(Motor+Gear=L2) - 35.2 - 35.2 - 39 - 39 - 42.8 - 42.8 - 46.7 - mm
Length
(Motor+Gear+Encoder) - TBD - mm
Length
(Motor +Encoder) - TBD - mm
6 - Max allowable torque (Continuous) - 100 - mNm
7 - Max allowable torque (Intermittent) - 200 - mNm
