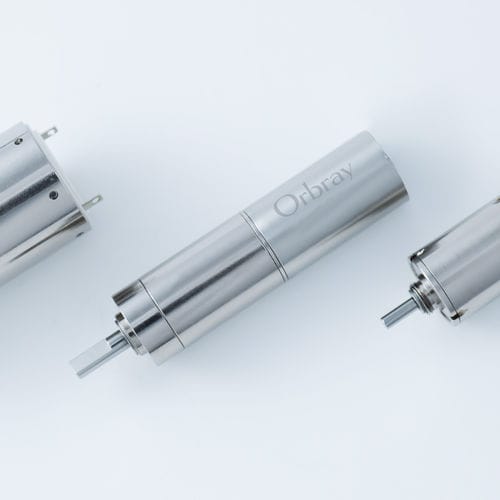

DC micro geared motor BMS16-30BLDCbrushless DCspur
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, brushless DC, BLDC
- Type
- spur
- Performance
- low-noise
- Product applications
- for automation, for industrial applications, for robots, industrial, for medical equipment, electronic equipment
Description
BMS16-30 with Spur gear
- Gear Ratio - 29 - 49 - 71 - 94 - 198 - 302 -
1 - Reduction ratio (absolute value) - 29.07:1 - 48.58:1 - 71.35:1 - 93.68:1 - 198.06:1 - 301.84.6 -
2 - Number of stage - 3 - 4 - 4 - 4 - 5 - 5 -
3 - Efficiency - 85 - 85 - 72 - 72 - 61 - 59 - %
4 - Direction of rotation - ≠ - = - = - = - ≠ - ≠ -
5 - Length
（Motor＋Gear＝L2） - 41.2 - 43.2 - 43.2 - 43.2 - 45.2 - 45.2 - mm
Length
（Motor＋Gear＋Encoder） - TBD - mm
Length
（Motor ＋Encoder） - TBD - mm
6 - Max allowable torque (Continuous) - 15 - 24 - mNm
7 - Max allowable torque (Intermittent) - 30 - 60 - mNm
