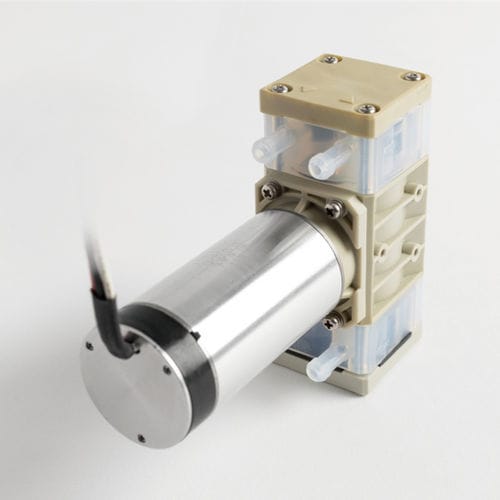

Diaphragm pump 7038Tairwith brushless DC motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- air
- Operation
- with brushless DC motor
- Mobility
- stationary
- Domain
- industrial
- Voltage
- 24 V
- Protection level
- chemical-resistant
- Other characteristics
- compact, low-noise, oil-free, micro, mini pump
- Flow
1 l/min
(0.26417 us gal/min)- Pressure
Min.: 0 Pa
(0 psi)Max.: 100,000 Pa
(14.504 psi)
Description
Liquid diaphragm pump 7038T
Nominal Voltage [V] 24
Flow Rate [ml/min] 1000
Pressure Range [kPa] 0...+100
Suction Range [kPa] -50...0
Contact Material PFA, FKM, (FFKM, PTFE)
Driver Built-in
Motor Type Brushless
-mini pump
-diaphragm pump
-high chemical resistance
-light weight
-compact
-long life
-Oil-free
-low noise
-check valve structure
-no priming required
-electric motor
Catalogs
Orbray DiaphragmPump
19 Pages
