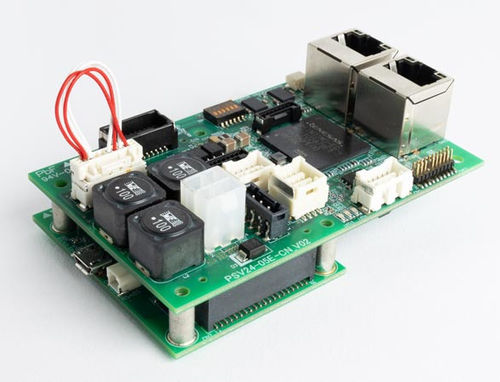

DC servo-drive PSV24-05E

brushlessbrushedUSB

PSV24-05E is a servo driver compatible with our coreless brushed motors/brushless motors*. Various control modes and I/O are incorporated into a compact board that matches the sizes of Orbray’s motors. Compatibility with EtherCAT, and RS485, enables synchronous control of multiple axes by daisy-chaining. Dedicated software is also available for initial operation checks and experiments. NOTE) ※ Motor must be equipped with an encoder for driving. Not compatible with brushless motors without Hall sensors. ※ Not sold separately. Driver is available to purchase in combination with motors. Compliant with EtherCAT standards.* Does not currently support CiA402 drive profile (to be supported). ・External Dimensions - 90x58x30mm ・Control method Position, Speed, Current (Torque) ・Compatible motors Our brushless motors and coreless motors ※Encoder option required ※Not compatible with sensorless ・Encoder connection - Incremental　(Absolute will be supported.) ・Supply voltage 6～24V ・Input Pulse train command, 8 digital systems ・Output current Continuous 5A, max. 15A ・Control I/F USB serial communication, RS485, EtherCAT ・Output Five digital systems, Two analog systems, Two encoder signals
