CR technical fabric 270 series

reinforcedindustrialcoating

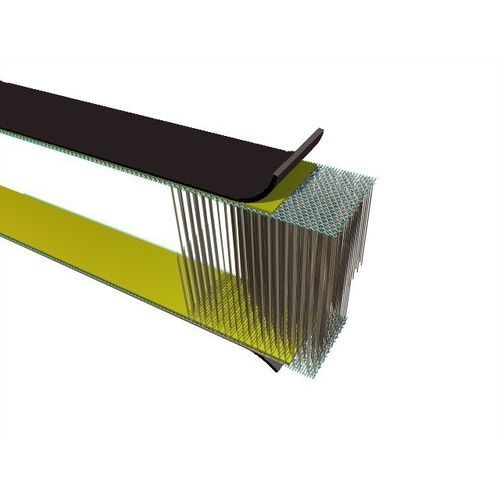

Our ORCA® Drop-stitch fabrics with polychloroprene coating are designed for inflatable structures with oustanding mechanical properties. They are used for Aircraft lifting bags, High pressure lifting bags, inflatable boat floors, rescue air tracks etc. Check our large range and feel free to contact us for further information. ORCA® 270 824 CR 67MM NB/NB • Inflated Height: 67mm • Surfacic mass : 2470 (±250) g/m² ORCA® 270 820 CR 100MM NB/NB • Inflated Height: 100mm • Surfacic mass : 2490 (±250) g/m² ORCA® 270 822 CR 125MM NB/NB • Inflated Height: 125mm • Surfacic mass : 2520 (±250) g/m² ORCA® 270 815 CR 150MM NB/NB • Inflated Height: 150mm • Surfacic mass : 2590 (±260) g/m² ORCA® 270 823 HP CR 150MM NB/NB • Inflated Height: 150mm • Surfacic mass : 3200 (±400) g/m² • Reinforced DS designed for High Pressure lifting bags >8bars ORCA® 270 821 CR 200MM NB/NB • Inflated Height: 200mm • Surfacic mass : 2700 (±270) g/m² ORCA® 270 845 H CR 200MM NB/NB • Inflated Height: 200mm • Surfacic mass : 3820 (±400) g/m² • Heavier with thicker rubber layer, designed for greater abrasion resistance. ORCA® 270 963 CR 350MM NB/NB • Inflated Height: 350mm • Surfacic mass : 2935 (±300) g/m²
