CSM technical fabric 3D CSM

heat-resistantreinforcedindustrial

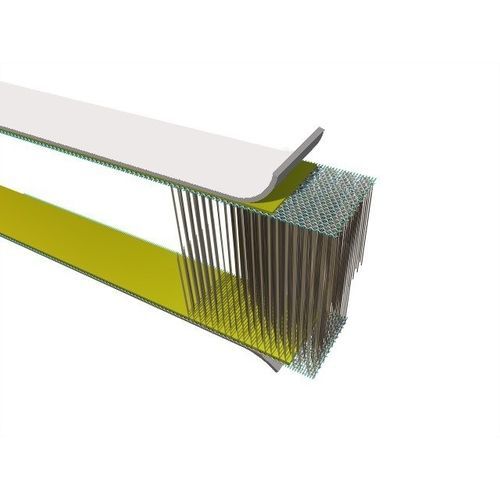

Our ORCA® Drop-stitch fabrics with CSM coating are designed for inflatable structures with strong ageing properties when exposed to Sun, Sea, Heat, Hydrocarbons or High abrasion. They are used for inflatables pontons, floating platforms, rescue air tracks, inflatable boat floors etc. Our CSM coating also enables to benefit from various colors with strong UV resistance. Our range goes till 600mm height. ORCA® 270 833 CSM 67MM FI/FI • Inflated Height: 67mm • Surfacic mass : 3050 (±350) g/m² ORCA® 270 847 CSM 100MM FI/FI • Inflated Height: 100mm • Surfacic mass : 3070 (±350) g/m² ORCA® 270 82x CSM 150MM FI/FI • Inflated Height: 150mm • Surfacic mass : 3170 (±350) g/m² ORCA® 270 846 CSM 200MM FI/FI • Inflated Height: 200mm • Surfacic mass : 3280 (±350) g/m² ORCA® 270 967 CSM 600MM FI/FI • Inflated Height: 600mm • Surfacic mass : 3820 (±350) g/m²
