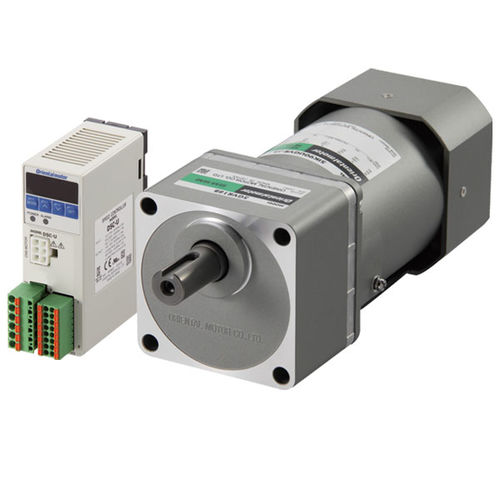

AC motor controller DCS series

compactdigital

The DSC Series features the a high strength Parallel Shaft or Right-Angle geared motor, Electromagnetic Brake type for vertical operations or the standard round shaft AC motor, each with a matching AC Input Speed Controller. The DSC Series AC Speed Control packages provide easy installation and many performance advantages with high reliability. Unique to Oriental Motor, the DSC Series offers closed loop control. The display and digital setting features are built into this compact driver. • Compact and Cost Effective • Advanced Controller with simple data input and digital indicator built in • Easy to control, digitally or manually, up to 20 units from one control method • Closed loop system for reliable performance and CPU controlled for improved speed regulation • High Torque, Long Life AC Gear Motors: 6 W (1/125 HP) ~ 90 W (1/8 HP) • Imperial or Metric Geared Output Shafts Alarm Output Increases Reliability Thanks to the closed loop control, feedback on the motor status is provided to the controller in real-time. An alarm signal is output when an abnormality, such as motor lock due to overload, occurs and the supply of power to the motor is stopped. Speed Regulation (Load) is Improved By making the control circuit CPU-controlled, the speed regulation (load) has improved. It is possible to make the deviation for the speed command and speed detection values almost 0, and the speed regulation has been improved from -5% to ±1%*. *Permissible torque when at 1000 r/min.
