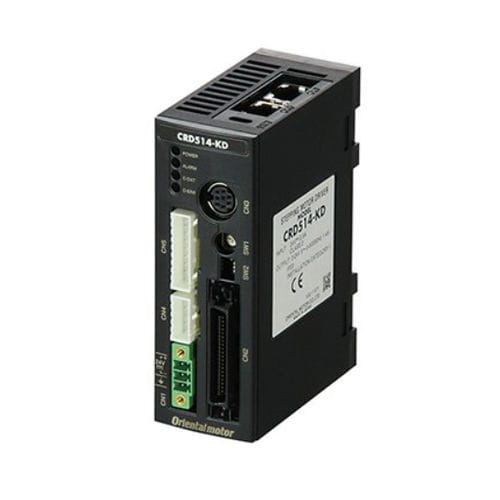

DC motor controller CRD5 series

microsteppingfive-phase steppercompact

The CRD 5-Phase Stepper Motor Driver with Built-in controller, Stored Data or Stored Program type, is a space saving, 5-phase driver / controller for New Pentagon type 5-phase stepper motors. The Stored Data type is network compatible and works with the FLEX products line for connectivity while the Stored Data type features advanced programing options. Both types support the lowest vibration through the use of a 5-phase motor, advanced microstepping control and are feature rich with many control options. • Stored Data (Network) or Stored Program Type • Space Saving Space Saving, Reduced Wiring Since a pulse generator is not required and the driver is also compact, space saving and system simplification are achieved. Maximum 63 Points of Operating Data Up to 63 points of operating data can be set in the driver. Setting of incremental (relative-distance specification) mode and absolute (absolute-position specification) mode for each data is possible. Positioning Operation The motor's operating speed and traveling amount are set in the operating data and operations are performed in accordance with the selected operating data. Linked Operation If the operating data is set to "linked", continuous positioning with the following data number is possible with one START signal. [Linked Operation] If data No. 01 is selected and the START input, linked driving from data No. 01 to No. 03 is performed without the motor stopping.
