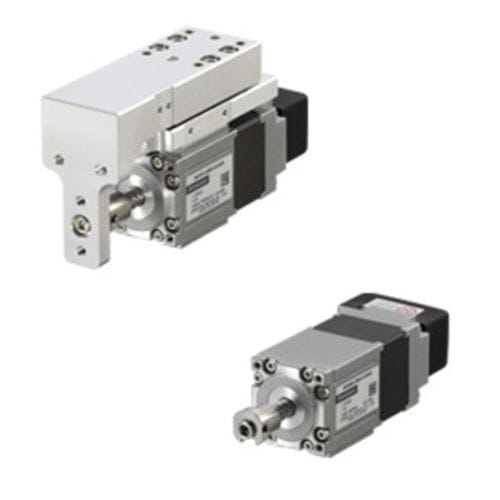

Linear actuator DRS2 series

electricball screwstepper

The DRS2 Series uses the AlphaStep AZ Series stepper motor and driver. The actuator is equipped with the Mechanical Absolute Encoder Stepper Motor. The Absolute Encoder is a mechanical multi-turn Absolute Sensor, so an external sensor is not required. This helps to save space and reduce wiring, as well as more compact and lightweight design of the equipment. Actuator is available with or without a Guide. Electromechanical Brake, and Rolled or Ground ball screws. Built-in Controller (Stored Data) allows for easy networking and simplified multi-axis control. • AZ Series Absolute Encoder Stepper Motor • Built-in Controller (Network Type), Pulse Input Type or Pulse Input Type with RS-485 Communications Drivers • 24/48 VDC Input Reliable Design and Structure A hollow rotor and a ball screw nut are joined. Since no connecting parts are necessary, there is less backlash than when coupling rigidity, etc. combines other parts. Therefore, highly accurate positioning can be achieved. High Positioning Accuracy The ball screw nut is linked with the hollow rotor. Through the coupling rigidity and other aspects of parts combination, the impact of backlash has been minimized achieving high-precision positioning. Ideal for applications where high positioning accuracy and low vibration are required, such as optical devices and semiconductor systems that use fine-feed pitches. The DRS ground ball screw type achieves high reliability by maximizing the performance of a 5-phase stepper motor.
