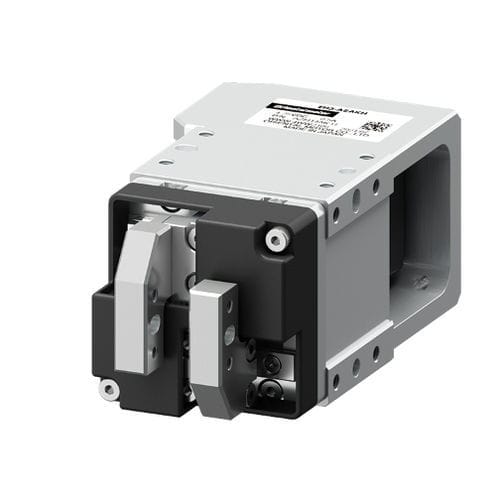

The EH Series is a electric gripper based on a rack-and-pinion mechanism equipped with an AZ Series motor. Its delicate grip, like that of a human hand, assists in automation and labor-saving.
• Requires AZ Series DC Input Driver
• Connection Cables sold separately
Lead Time1 - Up to 5 pcs as of 6:30am EST Estimated Ship: 08/22/2024
Actuator Frame Size -
36 mm
Cover -
Equipped
Input Power -
DC
Repetitive Positioning Accuracy (mm) -
±0.02
Backlash -
0.2 mm (each side)
Stroke -
15 mm (7.5 mm each side)
Maximum Speed -
156 mm/s (78 mm/s each side)
Maximum Acceleration -
20 m/s2 (10 m/s2 each side)
Push Speed -
20 mm/s (10 mm/s each side)
Minimum Travel Amount -
0.02 mm (0.01 mm each side)
Permissible Load -
2 N
Static Permissible Moment Load
MP: 0.7 N·m
MY: 0.2 N·m
MR: 0.2 N·m
Insulation Class -
Class B [130ºC (266ºF
Insulation Resistance -
100 MΩ or more when 500 VDC megger is applied between the following places:
Case - Motor and sensor windings
Dielectric Strength -
Sufficient to withstand the following for 1 minute:
Case - Motor and sensor windings 0.5 kVAC 50 Hz or 60 Hz
Ambient Temperature -
0 ~ 40ºC (32 ~ 104ºF) (non-freezing)
Ambient Humidity -
85% or less (Non-Condensing)
Operating Atmosphere -
Use in an area without corrosive gases and dust. The product should not be exposed to water, oil or other liquids.
