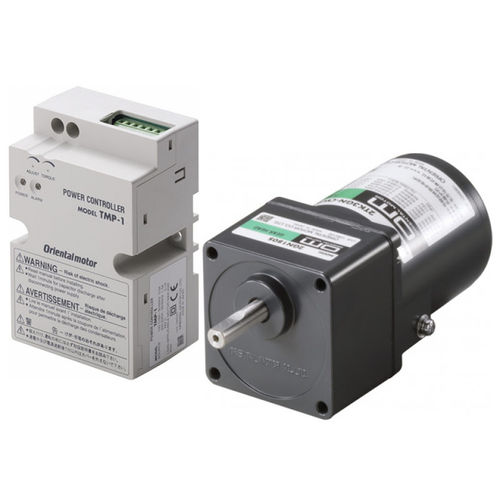

AC torque motor TM series
asynchronous100 Vfor winding operations

AC torque motor - TM series - Oriental Motor - asynchronous / 100 V / for winding operations
AC torque motor - TM series - Oriental Motor - asynchronous / 100 V / for winding operations
AC torque motor - TM series - Oriental Motor - asynchronous / 100 V / for winding operations - image - 2
AC torque motor - TM series - Oriental Motor - asynchronous / 100 V / for winding operations - image - 3
AC torque motor - TM series - Oriental Motor - asynchronous / 100 V / for winding operations - image - 4
Add to favorites
Compare this product

Go to the Oriental Motor website for more information

Characteristics

AC/DC
AC
Type
asynchronous
Voltage
100 V
Applications
for winding operations
Other characteristics
high-torque, with control system
Power

Max.: 20 W
(0.027 hp)

Min.: 3 W
(0.004 hp)

Torque

Max.: 10 Nm
(7.3756 ft.lb)

Min.: 0.044 Nm
(0.0325 ft.lb)

Description

Gearbox combination (TM) TM series Torque motor with power controller unit Features Winding applications Torque regulation High starting torque Frame size: 60,70,80,90 mm Output power: 3 - 20 W Analogue voltage for torque adjustment: 0 - 5 VDC Starting torque: 18 - 350 mNm
