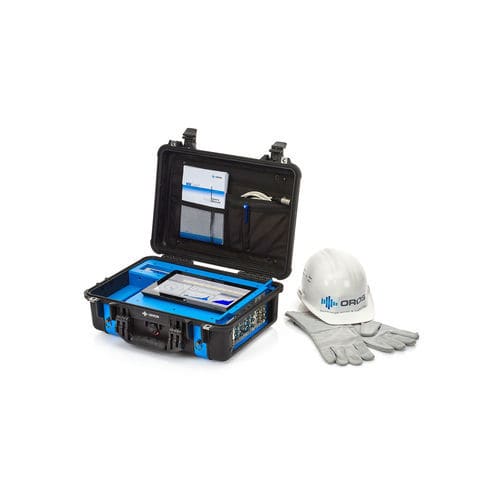

Monitoring software module ORBIGate

acquisitionindustrialmachine train

A dedicated software module for rotating machinery vibration : troubleshooting, diagnostics as well as acceptance works Orbits & Shaft Centerline 1x Bode & Waterfalls Multiplane Balancing Torsion Unattended Monitoring ODS & Modal Online & Offline Proximity probes Accelerometers direct connection Up to 32 channels / system Removable recording SSD disk A direct ADRE 408 replacement ORBIGate is the dedicated software module for industrial rotating machinery vibration during diagnostics as well as acceptance works. Easy to use, it provides all the tools to bring the highest level of set-up simplicity and efficiency to the user. Featuring simultaneous portable acquisition on up to 32 dynamic channels, an entire machine train can be tested during transients or steady states. The system acquires and analyzes orbit, Bode, shaft and casing vibration. Typical graphics are orbits, shaft centerline, spectra, Bode and polar diagrams, trends, waterfall, overall peak to peak, 1X (amplitude and phase). In a typical situation the OROS instrument is connected to the outputs of the monitoring system as shown in above figure. Find out how alarm trigger is a key feature to avoid waiting time for industrial rotating machinery vibration analysis!
