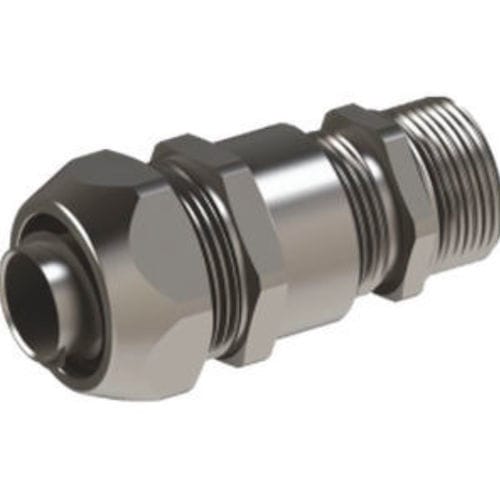

Threaded fitting ExMLSRM 00

nickel-plated brassNBRstandard

Certificate: IEP 15 ATEX 0355 U Protection Code: II 2G Exd IIC Gb/Ex e IIC Gb II 1D Ex ta IIIC Da I M2 Ex d I Mb/Ex e I Mb Standard: EN 60079-0:2012, 60079-1:2007, 60079-7:2007 60079-31:2009 Protection Class: IP67 Temperature Range: -20 °C +100 °C / -30 °C +150 °C Cap Nut: Brass with nickel plated Clamping Insert: PA6 V0 Sealing Ring: TPV Ring: PA6 V0 Ferrule: Aluminium / Brass Gland Body: Brass with nickel plated O-ring: NBR / Silicone Connection Thread: Metric EN (60423)/ASME B 10.20.1 / DIN 259 Properties: - Easy to assemble - Fixed or swivel body version - Apply with either LGT or CTS, CTPS conduits
