Hydraulic pile-driving hammer HD 1000 series

cylindrical

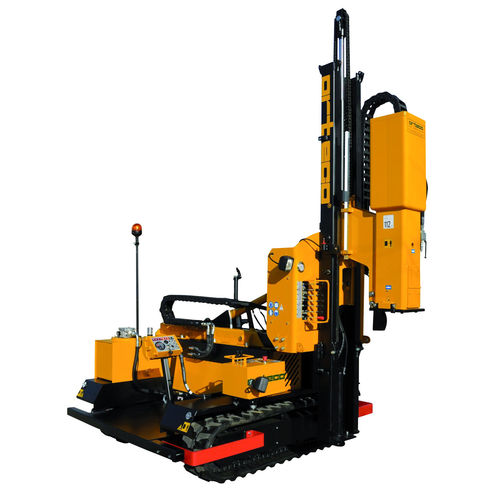

Piledriver HD 1000 crawler mounted Piledriver crawler mounted Features: Hammer power: 1200 J Engine: Hatz 3L41-C Pile max. section and max. lenght: 210x210 mm; 5 m Weight: 4.050 kg The HD self-propelled crawler mounted pile driver is intended for installation of road safety barriers to tackle "heavy" and continuous jobs where productivity and reliability are essential factors. The most robust steel structures, the major powers and the consequent increase in weight, confer to the series "HEAVY DUTY" useful requirements for working for a long time, better and at the highest level of professionalism. This machine allows you to inflate posts with great precision thanks to its stability and maneuverability. A single operator drives the piles and moves the machine. Our design allows the pile driver to be removed from the crawler and mounted on the back of a truck so that our customers can use the most appropriate machine for every job, and also allows customers who already own a pile driver to purchase the crawler only at a later date. Technical data: Hammer power1200 Joule Maximum diameter of the post210 mm Maximum length of the postmm. 2800 (std) / 4500 (opt) Engine powerHp 44,2 / Kw 32,5 Total weight4.050 kg Accessories: Check out the list of accessories: highlighted in green you will find those associated with this product. Piledriver HD 1000 truck-mounted Piledriver truck mounted Features: Hammer rating: 680/1060 J Oil flow: 60/95 l/min Pile max. diameter and max. lenght: 210 mm; 2.8 m Weight: 1500 kg
