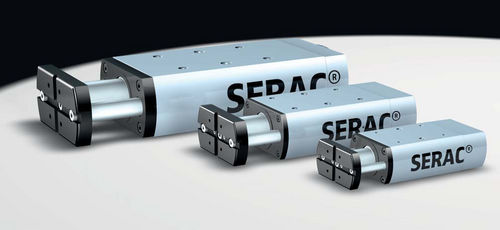

Electric cylinder SERAC® KH seriesguideflangecompact
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Applications
- guide
- Other characteristics
- compact, flange
- Stroke
45 mm, 65 mm, 90 mm
(1.772 in, 2.559 in, 3.543 in)- Force
Min.: 4.5 kN
Max.: 30 kN
- Speed
Min.: 50 mm/s
Max.: 320 mm/s
- Max acceleration
Min.: 1.9 m/s²
(6.23 ft/s²)Max.: 12.4 m/s²
(40.68 ft/s²)
Description
SERAC® KH Ultra compact electric cylinder for short strokes
The striking housing design of the SERAC® KH electric cylinder is both attractive and eminently practical. All the components of this complete, preassembled drive are housed in this totally smooth housing.
Short profile
• Maximum force 4.5 to 30 kN
• High rigidity construction
• Stable guide
• Short length
• Side mounting options or flange mounting for customized installation
• Mounting option on either side offers universality and very easy installation
• Heat sink for liquid cooling (optional)
• Ideal uses: punching, sheet metal working
• Direct travel measurement for maximum positioning accuracy under load
SERAC® electric cylinders can be operated with servo controllers from a range of well-known manufacturers. For complete, one-stop solutions, we cooperate with LTi DRIVES, manufacturer of the LTi ServoOne controller.
