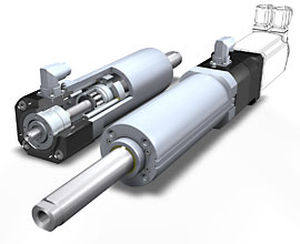

Electric cylinder SERAC® XHM12 screwwith servo-motormaintenance-free
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Technology
- with servo-motor, screw
- Protection class
- maintenance-free
- Other characteristics
- integrated, flange, with integrated guides, high load capacity
- Stroke
Max.: 250 mm
(9.843 in)Min.: 50 mm
(1.969 in)- Force
0.27 N, 0.49 N, 0.7 N, 0.94 N
- Torque
Max.: 10 Nm
(7.376 ft.lb)Min.: 0.3 Nm
(0.221 ft.lb)- Speed
75 mm/s, 150 mm/s, 225 mm/s, 300 mm/s
Description
SERAC® XHM12 – Ready-to-attach, high-rigidity servo linear module
The system technology of this screw unit, which comes with an integrated guide, is the same as for the SERAC® XH electric cylinder.
The adapter flange was designed to fit most common makes of servo motors.
Very high forces can be achieved with relatively small motors starting from a screw lead of 1 mm.
Short profile
• Forces up to 12 kN
• Screw leads 1 mm and higher
• High rigidity
• Integrated direct travel measurement
• Zero backlash
• Smooth running
• High load capacity also with small screw leads (e.g. 1 mm)
• Long life
• Maintenance-free or low maintenance
• Torsion-resistant servo clutch
