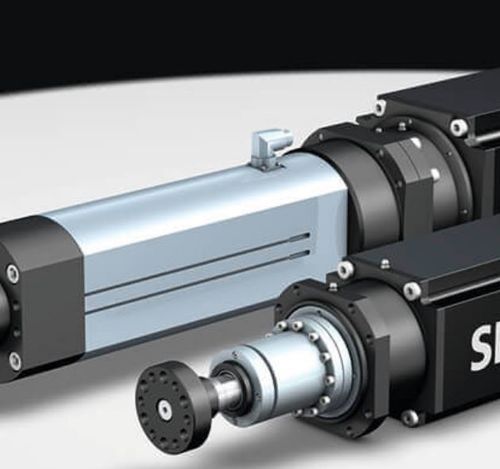

Electric cylinder SERAC® LH seriesbrakesmall
Add to favorites
Compare this product
Characteristics
- Type
- electric
- Applications
- brake
- Other characteristics
- small
- Stroke
50 mm, 100 mm, 200 mm
(1.969 in, 3.937 in, 7.874 in)- Force
Max.: 100 kN
Min.: 8 kN
- Speed
Max.: 425 mm/s
Min.: 63 mm/s
- Max acceleration
Max.: 7.7 m/s²
(25.26 ft/s²)Min.: 0.5 m/s²
(1.64 ft/s²)
Description
All the options in any combination can be selected over and above the basic LH30, LH50 and LH100 versions:
• Anti-rotate unit
• Motor holding brake
• Linear measuring system
• Different motor encoders
Short profile
• Maximum force 30 to 100 kN
• Slimline cylindrical design
• Rigid construction
• Modular construction
• Anti-rotate unit, holding brake, integrated linear travel measurement etc. optional
• Small lead (e. g. 1.5 mm) possible even at high forces (100 kN)
• Limit switch mountable directly on cylinder
SERAC® electric cylinders can be operated with servo controllers from a range of well-known manufacturers. For complete, one-stop solutions, we cooperate with LTi DRIVES, manufacturer of the LTi ServoOne controller.
