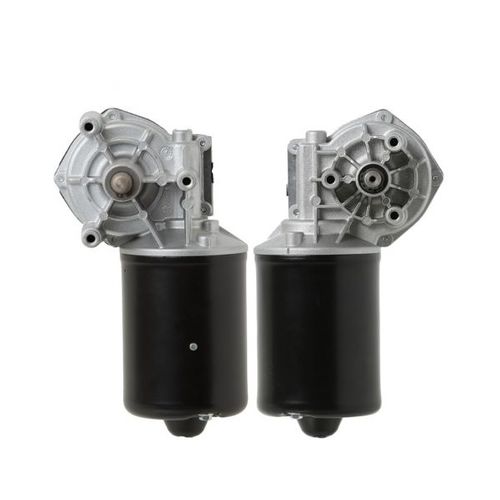

DC gear-motor MR76

permanent magnetwormright angle

Gearmotor MR76: DC gear motors with permanent magnets 12, 24, 36 and 48 Volt, with starting torque up to 65 Nm. Further details such as parts' images, nominal voltage, no-load speed and output power, are available on the technical data sheet. If specifically requested by the customer, gearmotors may be provided with a specific certification. TECHNICAL DATA Supply Voltage (VDC): 12, 24, 36, 48 No Load speed (RPM): 10÷350 Starting Torque (Nm): <65 Gear ratio: 1:49, 1:61, 2:47, 4:71 Gearwheel material: Pom, Bronze Max output power (W) : <120 Duty Type: S1, S2, S3 Weight (Kg): <2,2 Accessories: - • Standard EMC filter • Single channel Hall sensor with 1, 2, 4, 8 pulses/revolution Customizations: - • EMC filter • Thermal protection • Output shaft • Connector and wiring
