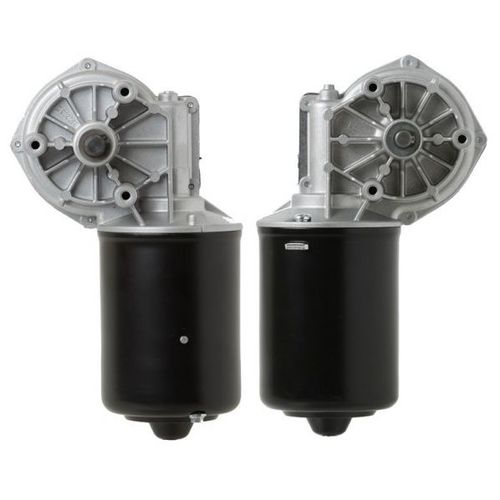

DC gear-motor MR90-45

permanent magnetwormright angle

Gearmotor MR90-45: DC gear motors with permanent magnets 12, 24, 36 and 48 Volt, with starting torque up to 80 Nm. Further details such as parts' images, nominal voltage, no-load speed and output power, are available on the technical data sheet. If specifically requested by the customer, gearmotors may be provided with a specific certification. TECHNICAL DATA Nominal Voltage (VDC): 12, 24, 36, 48 No Load speed (RPM): 10÷350 Starting Torque (Nm): <80 Gearwheel material: Pom, Bronze Max output power(W) : <200 Duty Type: S1, S2, S3 Weight (Kg): <3,2 Accessories: - • Standard EMC filter • Single or dual channel Hall sensor with 1 pulse/revolution Customizations: - • EMC filter • Thermal protection • Output shaft • Connector and wiring
