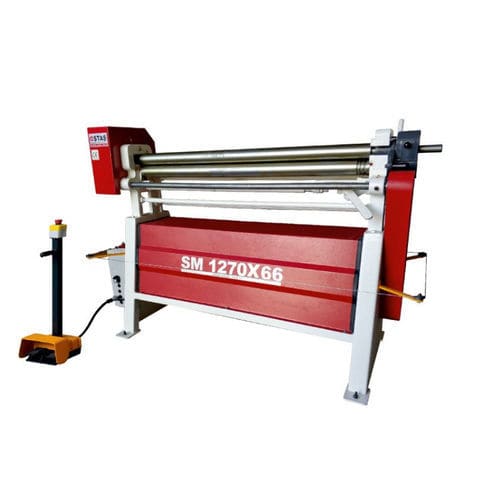

Hydraulic bending machine SM seriestube3 drive rollers
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Product handled
- tube
- Number of rollers
- 3 drive rollers
- Bending capacity
Max.: 2 mm
(0.08 in)Min.: 1 mm
(0.04 in)- Bending radius
1,050 mm, 1,070 mm, 1,270 mm, 1,570 mm, 2,070 mm
(41.34 in, 42.13 in, 50 in, 61.81 in, 81.5 in)- Overall length
1,350 mm, 1,500 mm, 1,750 mm, 2,000 mm, 2,500 mm
(53 in, 59 in, 69 in, 79 in, 98 in)- Total height
1,200 mm
(47 in)- Weight
Max.: 585 kg
(1,290 lb)Min.: 220 kg
(485 lb)- Total power
0.8 kW, 1.1 kW
(1.1 hp, 1.5 hp)
Description
Our SM ve S models are produced for general light works. Especially used for up to 2,0mm bending capacity. Wtih wide range of use, it is especially preferred by small workplaces.
Cast iron main frames
Top and bottom rolls powered by a single gearbox and gear system tensile strength (SM)
SAE 1050 Quality Certificated steel rolls with high
Manuel Drop-end
Mobile control panel (SM)
Wire grooves at the end of the rolls
Hardened shafts with induction
Catalogs
General catalogue
25 Pages
