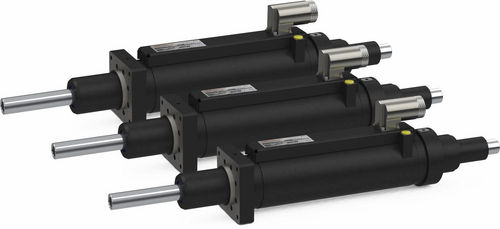

DC linear motor LP seriestubular
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Configuration
- tubular
- Speed
Max.: 9.9 m/s
(32.48 ft/s)Min.: 2 m/s
(6.56 ft/s)- Force
Max.: 8,400 N
Min.: 280 N
- Power
Max.: 14.6 kW
(19.85 hp)Min.: 2.8 kW
(3.807 hp)
Description
CHARACTERISTICS
Electric direct drive
Fast acceleration
Extremely quiet
No gear reduction, no backlash
Shear force-free
No rotor loss
Equipped with NdFeB magnets (rare earth magnets)
We will be happy to adjust the electrical and mechanical design elements according to your requirements.
FEATURES OF OSWALD MOTORS
Compact, robust, high power density
Maintenance-free / low maintenance
Coil design according to customer specifications
Long useful life
TECHNISCHE DATEN
Forces during continuous-run operation:1000 to 20.000 N
Acceleration:up to 200 m/s2
Swing:up to 220 mm
Cooling:Air or liquid
Safety Class:IP54
