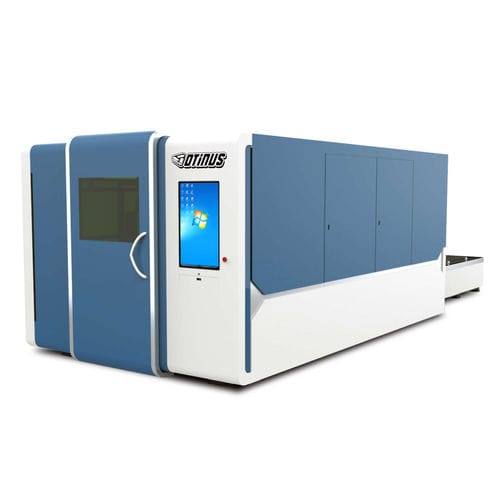

Fiber laser cutting machine for metaltubesheet
Add to favorites
Compare this product
Characteristics
- Technology
- fiber laser
- Material
- for metal
- Product handled
- tube, sheet
- Associated function
- bevel
- Other characteristics
- high-speed, precision, linear, 3D
- Acceleration
14 m/s²
(46 ft/s²)
Description
Max sheet size: 120 x 60 in
Positioning accuracy of X/Y axes: ± 0.05
Positioning repeatability of X/Y axes: ±0.03
Max idle speed: 120000 mm/min
Nominal power output: 12.0 kW
Power consumption: 73.0 kW
Source brand: MAX Photonic and Raycus as available options for selection
Power supply: ~3×400 V 50 Hz
Ingress protection rating: IP54
The machine boasts exceptional stability due to its welded construction, supported by sturdy legs. The combination of Japanese Fuji servo drives installed on substantial linear guides and bevel gears ensures both high-speed head movements and excellent precision.
