Electropneumatic feeder

motorized

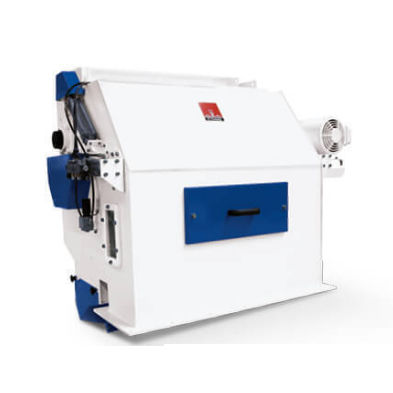

Roll feeders The Ottevanger Roll Feeders guarantees an even supply to the hammer mill and is driven by a special 1.5 kW motor reducer which can be regulated by a frequency converter. It has an integral stone catcher for removal of heavy particles. Iron particles are extracted by an extra-strong permanent magnet with an automatic cleaning system. The items removed are collected in a tray. The feed roller, stone catcher, magnet and collection tray are assembled into a fully sealed feed unit. The special, multiple dosing screw can be used as an option for very fatty products and products with poor flow characteristics. General •Capacity up to 60 tph depending on type of product •Maximum feed width: 1250 mm Application area Above all types of hammer mill and/or roller mill in the animal feed, pet food and aqua feed industry. Options Roll Feeders •Feed roller speed can be adjusted by means of a motor reducer and frequency control •Iron extraction magnet •Automatic magnet cleaning •Adjustable air inlet valve (with automatic model) •Stone catcher Available on request •Feed unit for products with low transportability or bulky products (screw feeder) •Automatic product load monitoring
