- Production Machines
- Forming Machine
- Stamped part forming machine
- Otto Bihler Maschinenfabrik GmbH & Co. KG

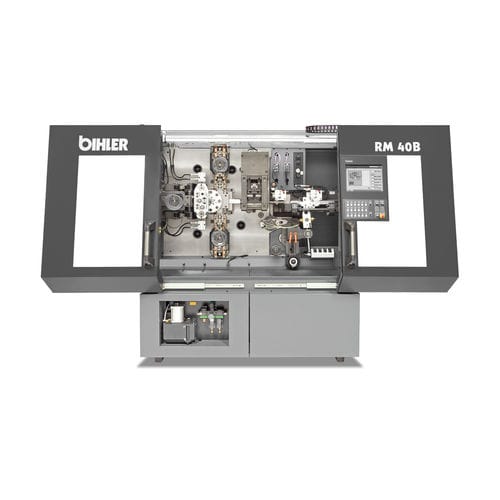

Stamped part forming machine RM 40Bmetalnumerical controlautomatic
Add to favorites
Compare this product
Characteristics
- Product handled
- for stamped parts
- Treated material
- metal
- Control
- numerical control
- Operating mode
- automatic
- Other characteristics
- stamping
Description
Specifications:
Stroke rate: max. 400 1/min. (cylindrical, straight bushes), max. 250 1/min. (flanged bushes, collar bushes)
Press: nominal stamping capacity 70 kN, stroke 12 mm
Slide units: nominal forming capacity 30 kN, stroke 25 mm
Bushing inner diameter: 6 mm - 18 mm
Bushing length: max. 40 mm
Dimensions: width 2,020 mm x depth 1,330 mm x height 2,030 mm
Weight: approx. 3,000 kg
