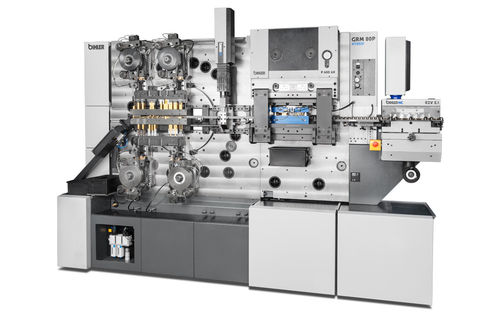

Stamped part forming machine GRM 80P hybridmetalcontinuousstamping
Add to favorites
Compare this product
Characteristics
- Product handled
- for stamped parts
- Treated material
- metal
- Operating mode
- continuous
- Other characteristics
- stamping
Description
Specifications:
Stroke rate: continuously variable from 5 to max. 250 1/min.
Press: nominal stamping capacity 400 kN, stroke 20 mm
Slide units: max. nominal forming capacity 90 kN, max. stroke 95 mm; NCA units
Feed length: servo feed: any feed pitch, mech. feed: max. 500 mm, with feed cycle reduction
Material: max. strip thickness: 6 mm, max. strip width 80 mm, max. wire Ø 6 mm
Dimensions: width 3,930 mm x depth 1,595 mm x height 2,220 mm
Weight: approx. 4,500 kg (without tooling)
