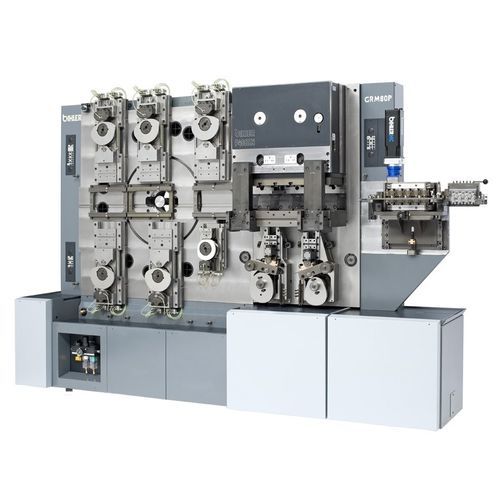

Automatic punching machine GRM 80P

Specifications Stroke rate: continuously variable from 5 to max. 250 1/min. Press: nominal punching capacity 400 kN, stroke 20 mm Slide units: max. nominal forming capacity 90 kN, max. stroke 95 mm Feed pitch: servo feed: any feed pitch, mech. feed: max. 500 mm, with feed cycle reduction Material: max. strip width 80 mm, max. wire diameter 6 mm Dimensions: width 3,930 mm, depth 1,595 mm, height 2,220 mm Weight: approx. 4,500 kg (without tooling)
