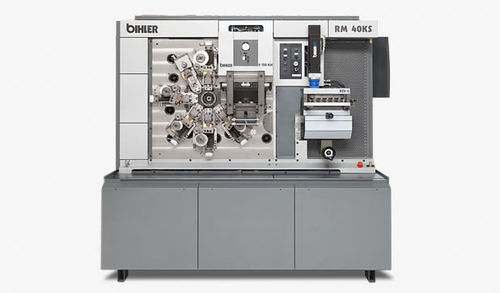

Automatic punching machine RM 40KS

Specifications: Stroke rate: steplessly adjustable from 5 to max. 350 1/min. Press: nominal force 150 kN, stroke 12 mm Slide units: max. nominal force 60 kN, max. stroke 50 mm Feed pitch: servo feed: any; mech. feed: max. 240 mm with feed cycle reduction Material: max. strip width 60 mm, max. wire Ø 4 mm (larger strip widths on request) Dimensions: witdth 2,590 mm x depth 2,100 mm x height 2,450 mm (with enclosure) Weight: approx. 3,160 kg (without tooling)
