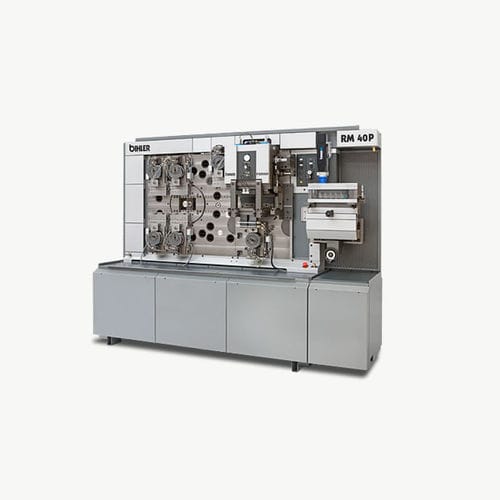

Automatic punching machine RM 40P
Add to favorites
Compare this product
Characteristics
- Control
- automatic
- Pressing force
200 kN
Description
Specifications:
Stroke rate: steplessly adjustable from 5 to max. 350 1/min.
Press: nominal force 200 kN, stroke 12 mm
Slide units: max. nominal force 60 kN, max. stroke 50 mm
Feed pitch: servo feed: any; mech. feed: max. 240 mm with feed cycle reduction
Material: max. strip width 60 mm, max. wire 4 mm (larger strip widths on request)
Dimensions: witdth 3,090 mm x depth 2,026 mm x height 2,320 mm (with enclosure)
Weight: approx. 3,900 kg (without tooling)
