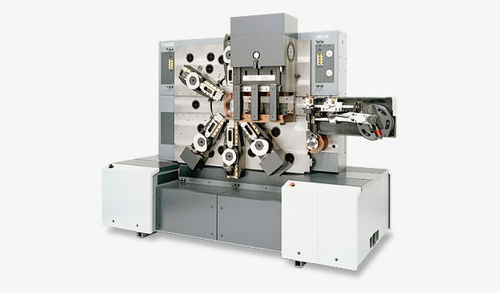

Automatic punching machine MCS 05
Add to favorites
Compare this product
Characteristics
- Control
- automatic
- Pressing force
300 kN
Description
Specifications:
Stroke rate: continuously variable from 5 to max. 500 1/min.
Press: nominal punching capacity 300 kN, stroke 16 mm
Slide units: max. nominal forming capacity 50 kN, max. stroke 50 mm
Feed pitch:mech. feed: max. 160 mm, without feed cycle reduction, servo feed: any feed pitch
Material: max. strip width 60 mm, max. wire diameter 6 mm
Dimensions: width 3,360 mm, depth 2,250 mm, height 2,390 mm
Weight: approx. 5,000 kg (without tooling)
